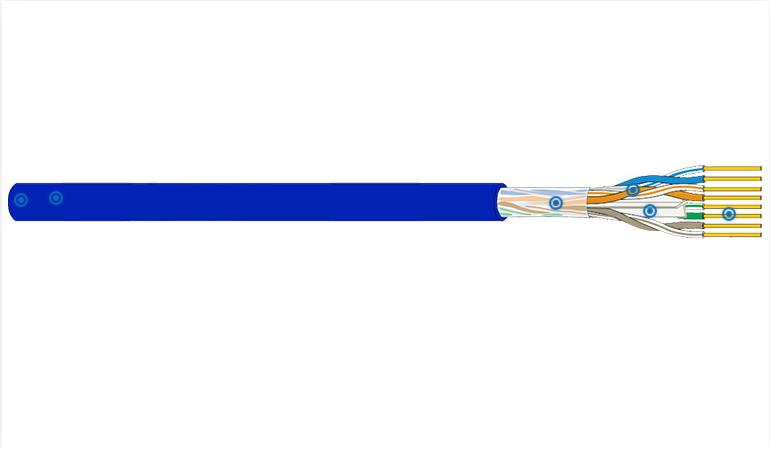

Category 6A 4 pairs Unshielded Twisted-pair Stranded Cable

Product application：

Category 6A 4 pairs unshielded (UTP) twisted-pair stranded cable is applied to mainly used for terminal connection module and patch panel, with ten-gigabit network transmission, and backward compatibility.

Application standard：

YD/T1019-2013、ISO/IEC 11801：2008、ANSI/TIA/EIA 568-C.2

Product Features：

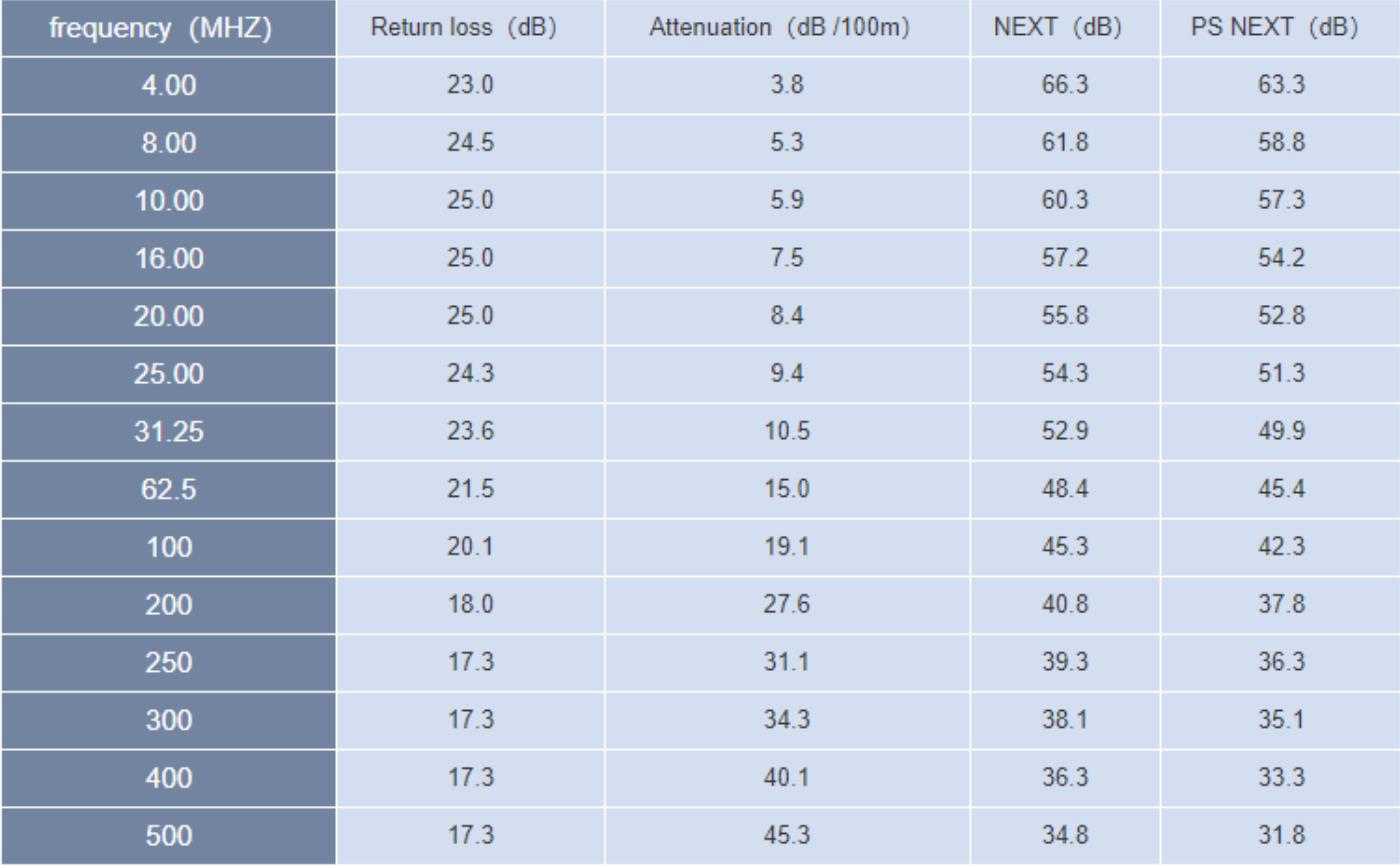

1. Product performance: passes through requirements of ANSI/TIA/EIA 568C.2 500 MHz bandwidth test.
2. Product process: reasonable small twist pitch is provided, the inner core is cross PE framework, and the cable outside is zigzag type which has improved the transmission performance and stability performance effectively.
3. Product appearance: sheath can be chosen from PVC, PE and LSZH; more colors are available.
4. Marking system: cable length is marked to reduce waste.
