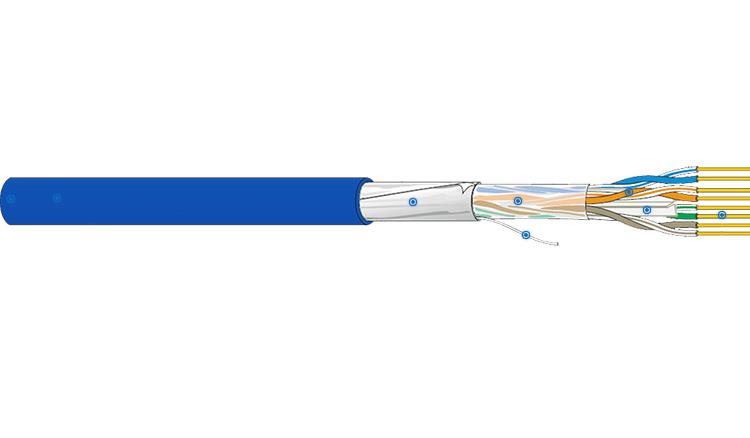

Category 6A 4 pairs Shielded Twisted-pair Stranded Cable

Product application：

Category 6A 4 pairs shielded (FTP) twisted-pair stranded cable is applied to terminal connection module and patch panel, with ten-gigabit network transmission, and backward compatibility.

Application standard：

YD/T1019-2013、ISO/IEC 11801：2008、ANSI/TIA/EIA 568-C.2

Product Features：

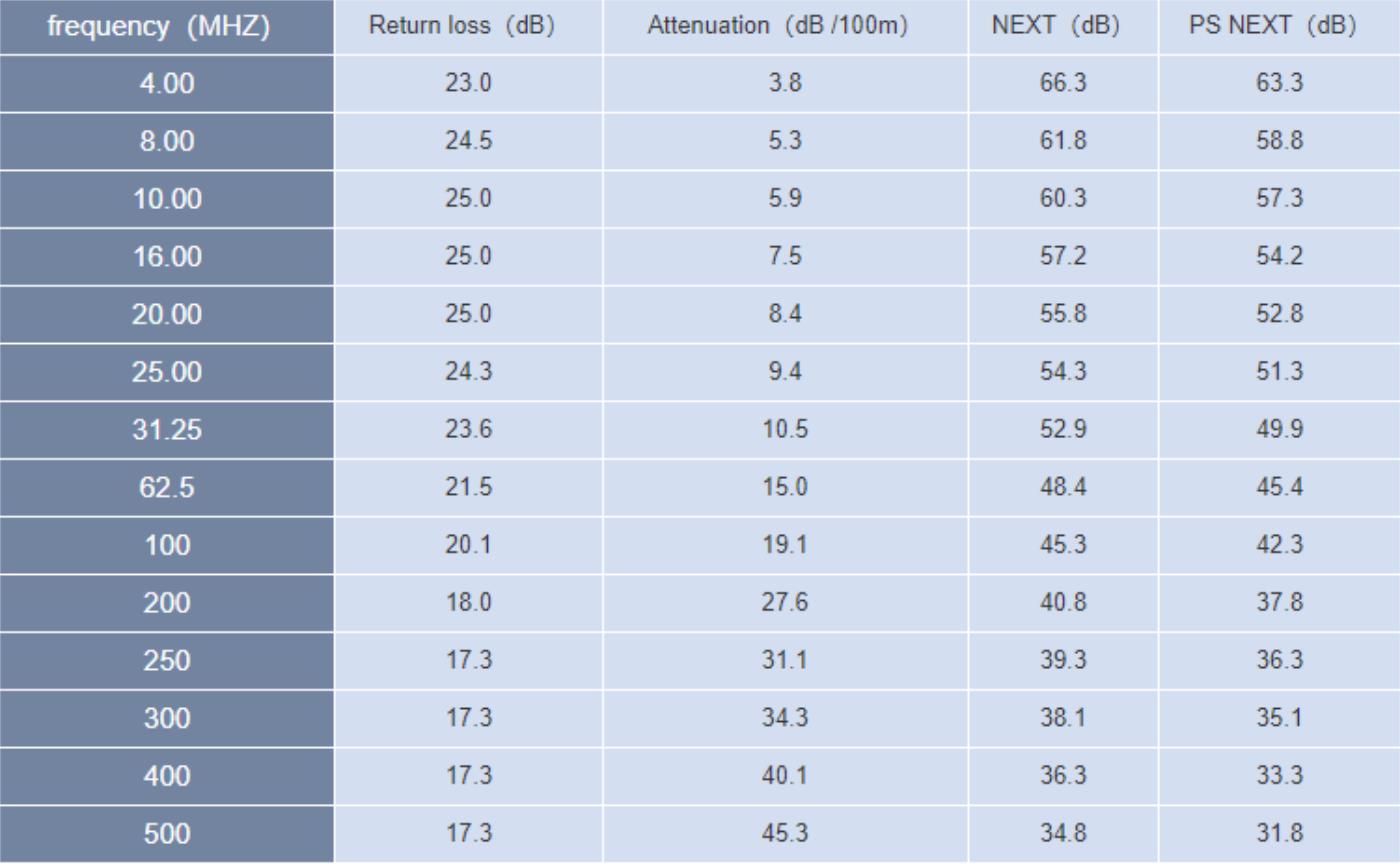

1. Product performance: bandwidth test passes through requirements of ANSI/TIA/EIA 568C.2 500 MHz .
2. Product process: Reasonable small twist pitch is provided, the inner core is cross PE framework, and the cable outside is zigzag type which has improved the transmission performance and stability performance effectively.
3. Product appearance: Sheath can be chosen from PVC, PE and LSZH; more colors are available.
4. Marking system: Cable Length is marked to reduce waste.
5. Shielding system: Cable is Packaged with aluminum foil or aluminum foil + tinning woven
mesh with grounding wire; 360 degree all metal shield is provided to effectively resist the
electromagnetic interference, and provide the better information confidentiality.
