Category 6 4 pairs Shielded Twisted-pair Stranded Cable

Product application：

Category 6 4 pairs shielded (FTP) twisted-pair stranded cable is applied to terminal connection module and patch panel, with ten-gigabit network transmission, and backward compatibility.

Application standard：

YD/T1019-2013、ISO/IEC 11801：2008、ANSI/TIA/EIA 568-B.2

Product Features：

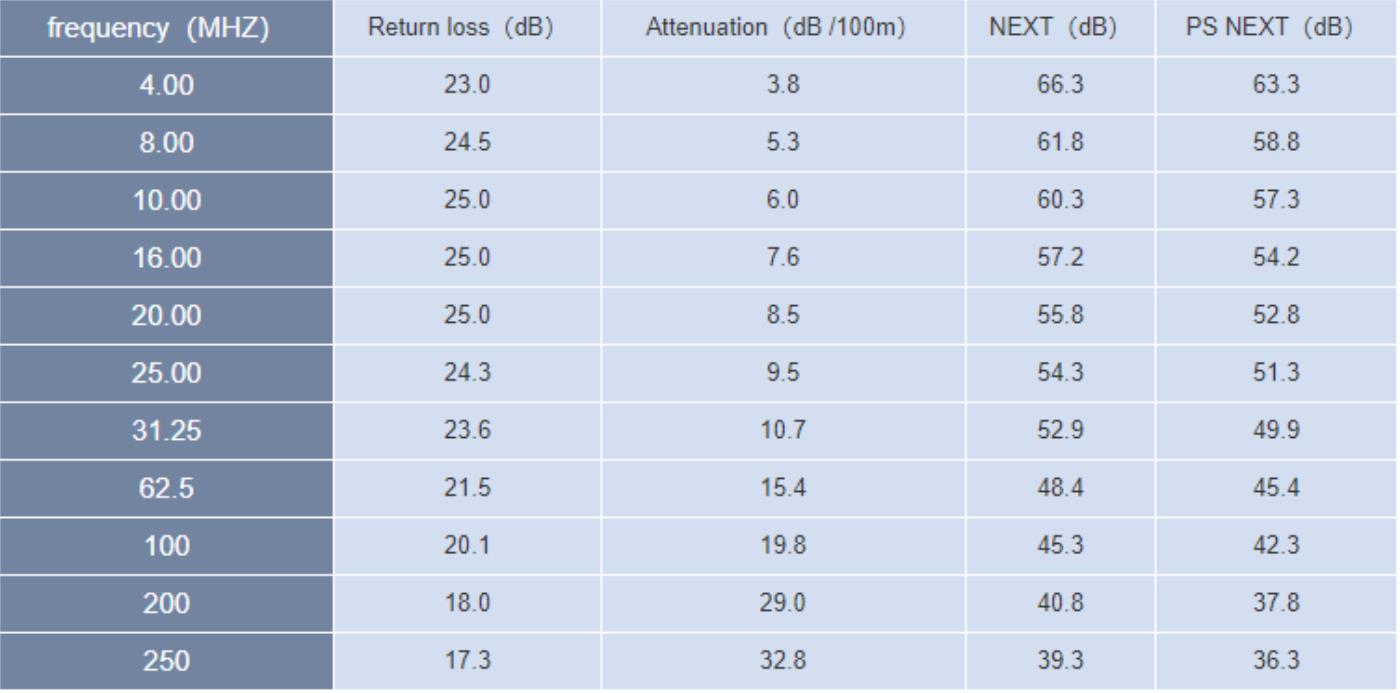

1. Product performance: Bandwidth test passes through requirements of ANSI/TIA/EIA 568C.2 250 MHz bandwidth test.
2. Product process: Reasonable small twist pitch is provided which has improved the transmission performance and stability performance effectively.
3. Product appearance: Sheath can be chosen from PVC, PE and LSZH; more colors are available;
4. Marking system: Cable length is marked to reduce waste.

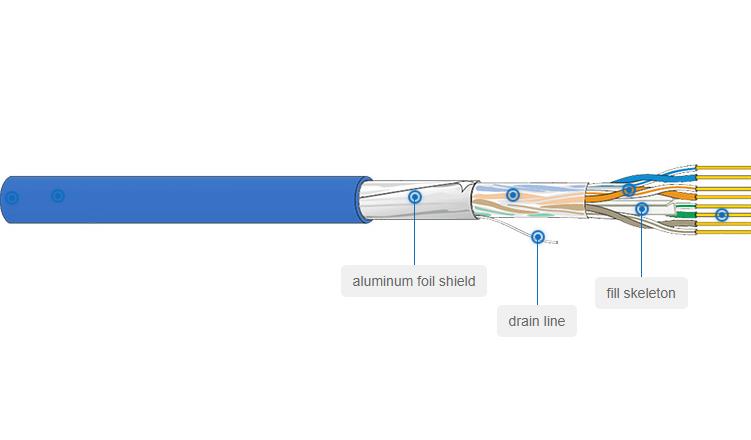

5. Shielding system: Cable packaged with aluminum foil or aluminum foil + tinning woven
mesh with grounding wire; 360 degree all metal shield is provided to effectively resist the
electromagnetic interference, and provide the better information confidentiality.
