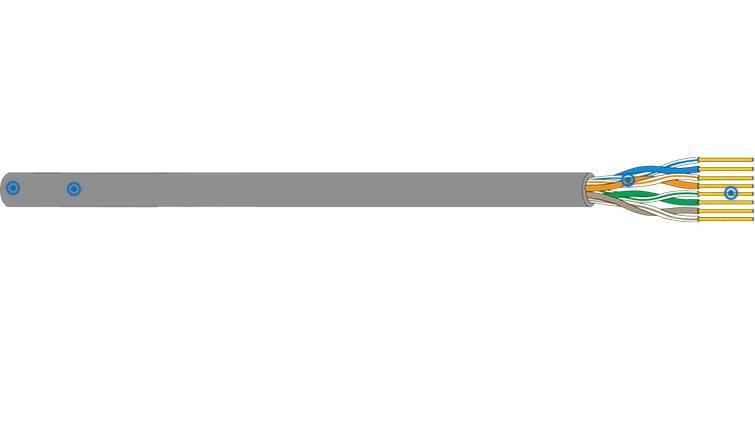

Category 5e 4 Pairs Unshielded Twisted-pair Stranded Cable

Product application：

Category 5e 4 Pairs unshielded（UTP）twisted-pair stranded cable is applied to horizontal area, the terminal is connected with module patch panel, and often used for voice transmission, data transmission and video signal.

Application standard：

YD/T1019-2013、ISO/IEC 11801：2008、ANSI/TIA/EIA 568-C.2

Product Features：

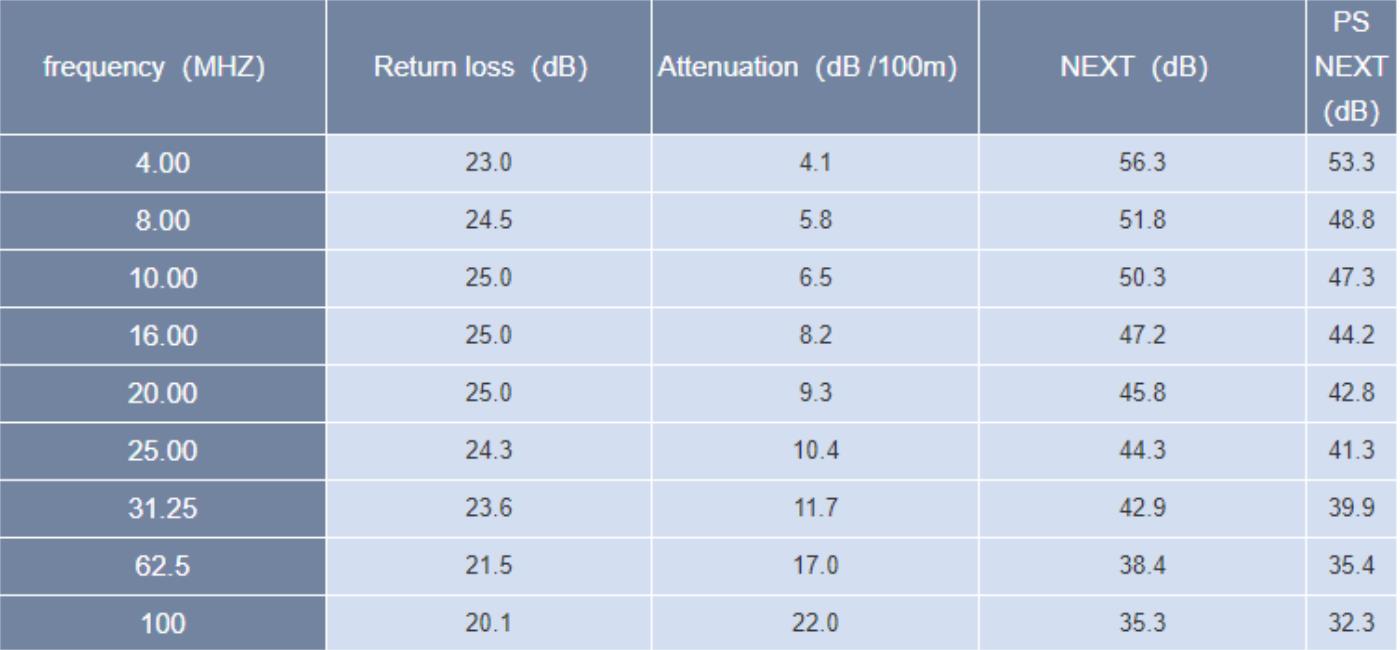

1. Product performance: Bandwidth test passes through requirements of ANSI/TIA/EIA 568C.2 100 MHz.
2. Product process: Reasonable small twist pitch is provided, which has improved the transmission performance and stability performance effectively.
3. Product appearance: sheath can be chosen from PVC, PE and LSZH; more colors are available.
4. Marking system: cable length is marked to reduce waste.
